3w-5w Exit Sign Light Fixture

Rechargeable led building emergency exit sign light with battery J series

• Applications:

Perisa Series LED exit sign is used:

In locations deemed hazardous due to the presence of flammable vapors, gases, or combustible dusts.

Such as:

- oil and gas industry

- chemical industry

- metal treatment

- food and alcohol industry

- ocean, marine location

- aerospace field

In areas where flammable gases and vapors may be present due to abnormal, unusual or accidental conditions.

To provide distinct, highly visible exit marking.

To indicate the direction of travel to exits.

• Features:

Energy-efficient for lower cost of operation (3W / 5W).

Can be used in a hazardous location.

Can be installed in moist, humid, rainy and wet environments.

Provided with 3/4＂NPT or M25 conduit hubs.

Alternate exit legend and languages available.

3-hour emergency operation.

Edge-lit sign.

• Certifications and compliances:

Marking UL844 (North American):

Class I, Division 1, Groups B, C, D

Class I, Division 2, Groups A, B, C, D

Class II, Division 1, Groups E, F, G

Class II, Division 2, Groups F, G

Class III

UL Marking:

UL 824

UL 924

UL 121201/CSA NO.213

CSA C22.2 No.137-18

Ingress Protection: IP66 (wet location)

• Electrical ratings:

3W or 5W rated power.

100-277 VAC or 12-36 VDC operation.

Color rendering index (CRI): >70.

Color temperature: red or green.

3-hour emergency time.

Temperature performance data:

Ambient temp : -40°C to 60°C Temp. class : T6

-40°F to 140°F

• Standard Materials:

Housing: A356T6 aluminum (less than 0.4% copper content) with baked-on gray epoxy finish.

Exit Sign: Tempered glass.

Hardware: Stainless steel

Mounting Sling: Stainless steel.

• Ordering information:

Part number example

• Example: EX-3W PEYZD

• Packing information:

• Dimension (in inches):

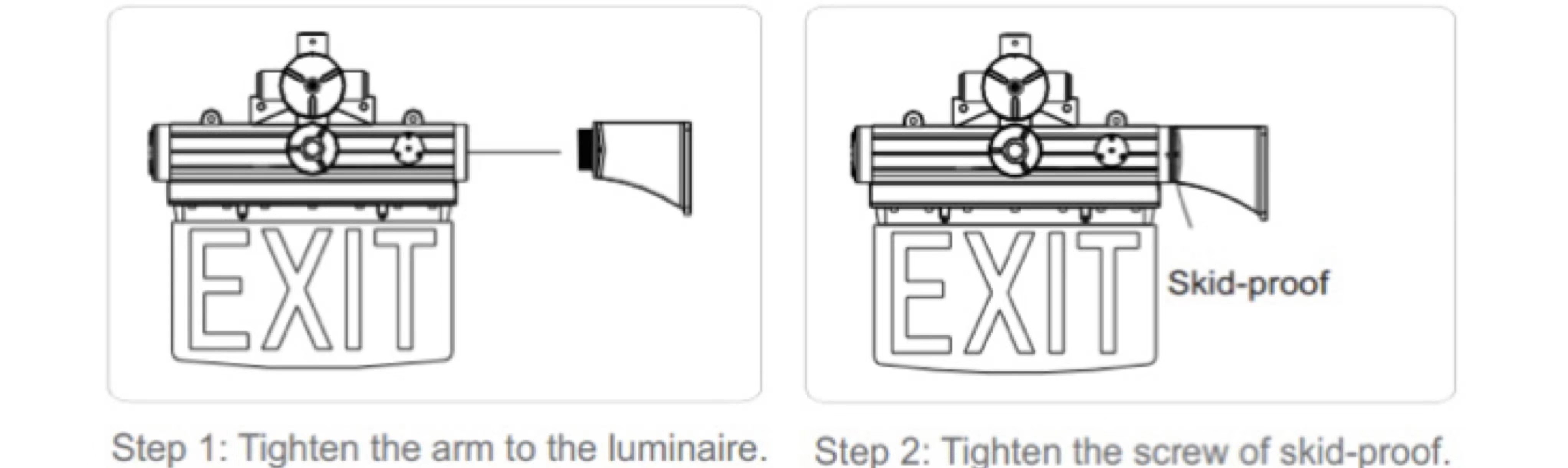

• Installation:

Mounting methods and accessoriess:

2. Pandent Mounting with safe wires:

3. Pole Mounting

• Accessories :

• FAQ

  Q1. Can I have a sample order ?

  Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
  Q2. What about the lead time?
  Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than
  Q3. Do you have any MOQ limit for order?
  Low MOQ, 1pc for sample checking is available
  Q4. How do you ship the goods and how long does it take to arrive?
  We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
  Q5. How to proceed an order ?
  Firstly, let us know your requirements or application.
  Secondly, We quote according to your requirements or our suggestions.
  Thirdly,customer confirms the samples and places deposit for formal order.
  Fourthly, We arrange the production.

5w exit sign light fixture

3w exit sign light fixture

IP66 exit sign with lights

3w-5w Exit Sign Light Fixture Images
